Guillotine Shear (12 ft.)
.JPG/:/cr=t:11.22%25,l:11.13%25,w:76.92%25,h:76.92%25/rs=w:400,cg:true,m)

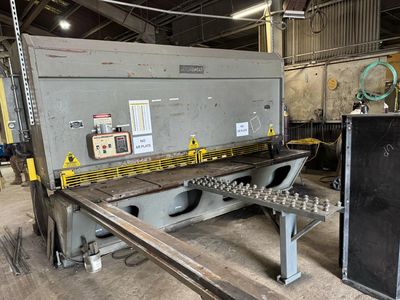

Hydraulic Guillotine Shear
The hydraulic guillotine shear works by first clamping the material with a ram. A blade then comes down across a fixed blade to shear the material. The moving blade can be set on an angle in order to shear material progressively from one side to the other.
Geometric Possibilities
- Squaring Shear
- Angle Shear
- Bow-Tie Shear
- Bar Shear
